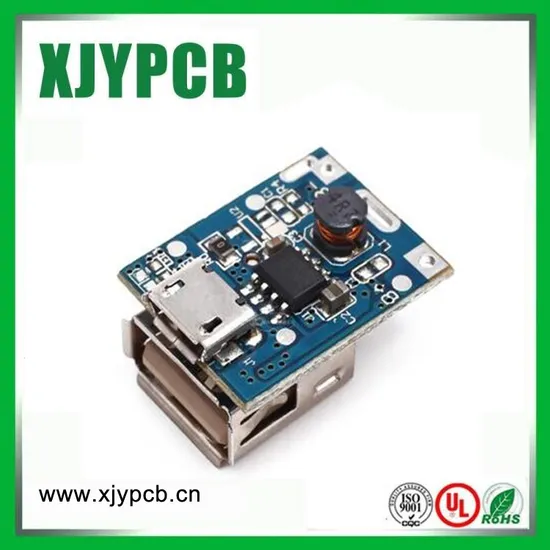

Ceramic Substrate Board Aluminium PCB

Basic Info.

Model NO.	XJYPCB-LFL02
Material	Fiberglass Epoxy
Flame Retardant Properties	V0
Mechanical Rigid	Rigid
Processing Technology	Electrolytic Foil
Base Material	Copper
Insulation Materials	Epoxy Resin
Model	FR-4
Board Thickness	1.6mm
Copper Thickness	1oz
Surface Finishing	Immersion Gold
Solder Mask Type	Green
Silkscreen	White
Min. Hole Size	0.3mm
Min. Line Spacing	0.15mm
Min. Line Width	0.15mm
Certificates	UL, RoHS, SGS, ISO9001
Shipping	DHL, UPS, TNT, FedEx, etc
Transport Package	Vacuum Package
Specification	Normal
Trademark	OEM
Origin	China
HS Code	85340090
Production Capacity	10000 Square Meter/Square Meters / Month

Product Description

PCB Base Information:
1. Board thickness: 1.6mm
2. Material: FR4
3. Surface Finishing: Immersion Gold
4. Soldermask: Green
5. Min. Hole Size: 0.3mm
6. Certificates: UL, RoHS, SGS, ISO9001
7. Shipping: DHL, UPS, TNT, FedEx, etc

OUR PCB BOARD MANUFACTURE AND PCB ASSEMBLY SERVICE
1. PCB board file with parts list provided by customers
2. PCB board made, circuit board parts purchased by us
3. High Quality, competitive Price & Best Service
4.100% E-tested PCB

TESTING PROCEDURES FOR PCB BOARD
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe
* Impedance control
* Solder-ability detection
* Digital metallograghic microscope
* AOI (Automated Optical Inspection)

FOLLOWING SPECIFICATION ARE NEEDED FOR QUOTATION
A) Base material
B) Board thickness
C) Copper thickness
D) Surface treatment
E) color of solder mask and silkscreen
F) Quantity

DELIVERY TIME FOR PCB BOARD
1) PCB production time: Sample: 3-4 days / mass production: Within 7 days
2) Component purchase: 2 days if all components is available in our domestic market.
3) PCB Assembly: Samples: Whthin 2 days / mass production: Within 5 days

SHIPPING METHOD AND PAYMENT TERMS
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6. By Paypal, T/T, West Union, etc.

We sincerely hope to establish longtime and friendly business relationship with you. If you have interest in our product, please don't hesitate to contact us!
